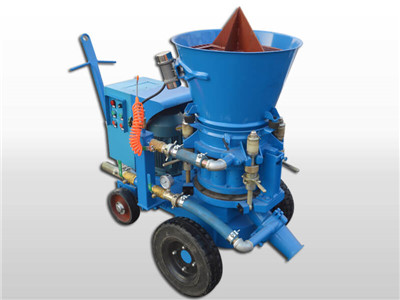

GZ-3ER Refractory Shotcrete Gunite Machine

GZ-3ER Refractory Shotcrete Gunite Machine refractory shotcrete machine is good at refractory shotcrete gunite.

send email get price

GZ-3ER Refractory Shotcrete Gunite Machine

Features

GZ-3ER Refractory Shotcrete Gunite Machine refractory shotcrete machine is good at refractory shotcrete gunite. Refractory shotcrete gunite machine variable Output with variable-frequency drive. It bag cutter and flat hopper with vibrator.

Technical data

GZ-3ER Rated Output 1-3m3 /h (2-6 ton/h)
GZ-3ER Max. Horizontal Conveying Distance 100m
GZ-3ER Max. Aggregate Size Φ10 mm
GZ-3ER Conveying Hose Inner Diameter 32/38mm
GZ-3ER Operating air Pressure 0.2-0.4MPa(29-58PSI)
GZ-3ER Air Consumption 5~6m3/min(180-215CFM)
GZ-3ER Motor Power 4kw
GZ-3ER Voltage 3 phase, 380V, 50Hz
GZ-3ER Material Charging Height 1.1m
GZ-3ER Rotor Speed 0-13.2r/min
GZ-3ER Overall Dimension(L×W×H) 1.13×0.54×1.1m
GZ-3ER Weight 430kg

Applications

GZ-3ER Refractory Shotcrete Gunite Machine used for refractory spraying applications, as well as for concrete shotcrete application.
